Charts

Advanced Reports provides a powerful way to visualize your Jira data through charts.

Both Local Reports and Local Insights editors allow you to create charts based on the SQL query results. Charts are rendered using Vega-Lite (opens in a new tab) and Vega (opens in a new tab) under the hood — both specification formats are supported.

Charts can also be interactive — supporting tooltips, hover highlighting, selections, zooming and panning — and can be generated for you by AI: by the AI Explorer (Advanced Edition) or by the AI Assistant when editing Insights.

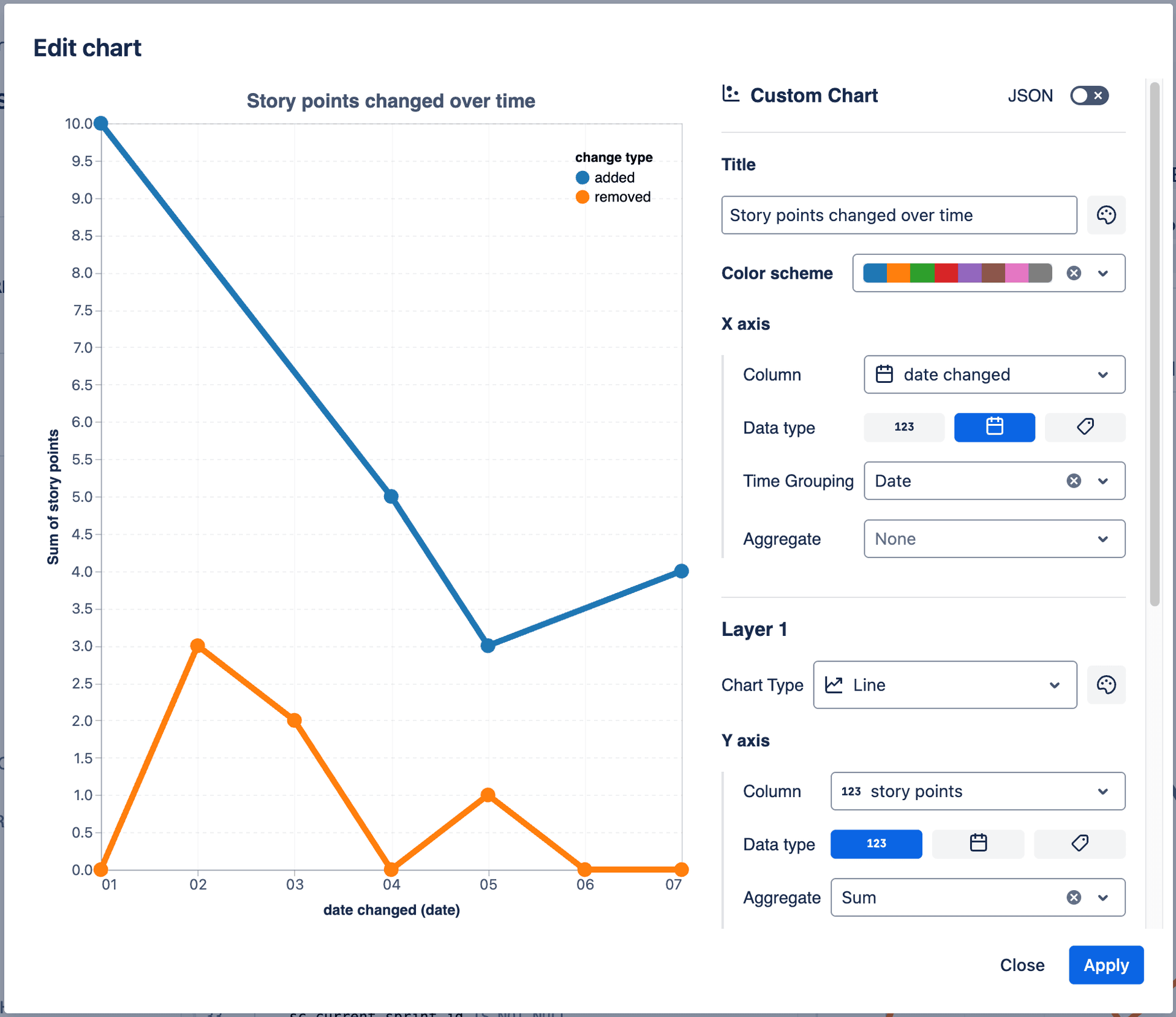

Edit chart in the report

Charts in Insights editor

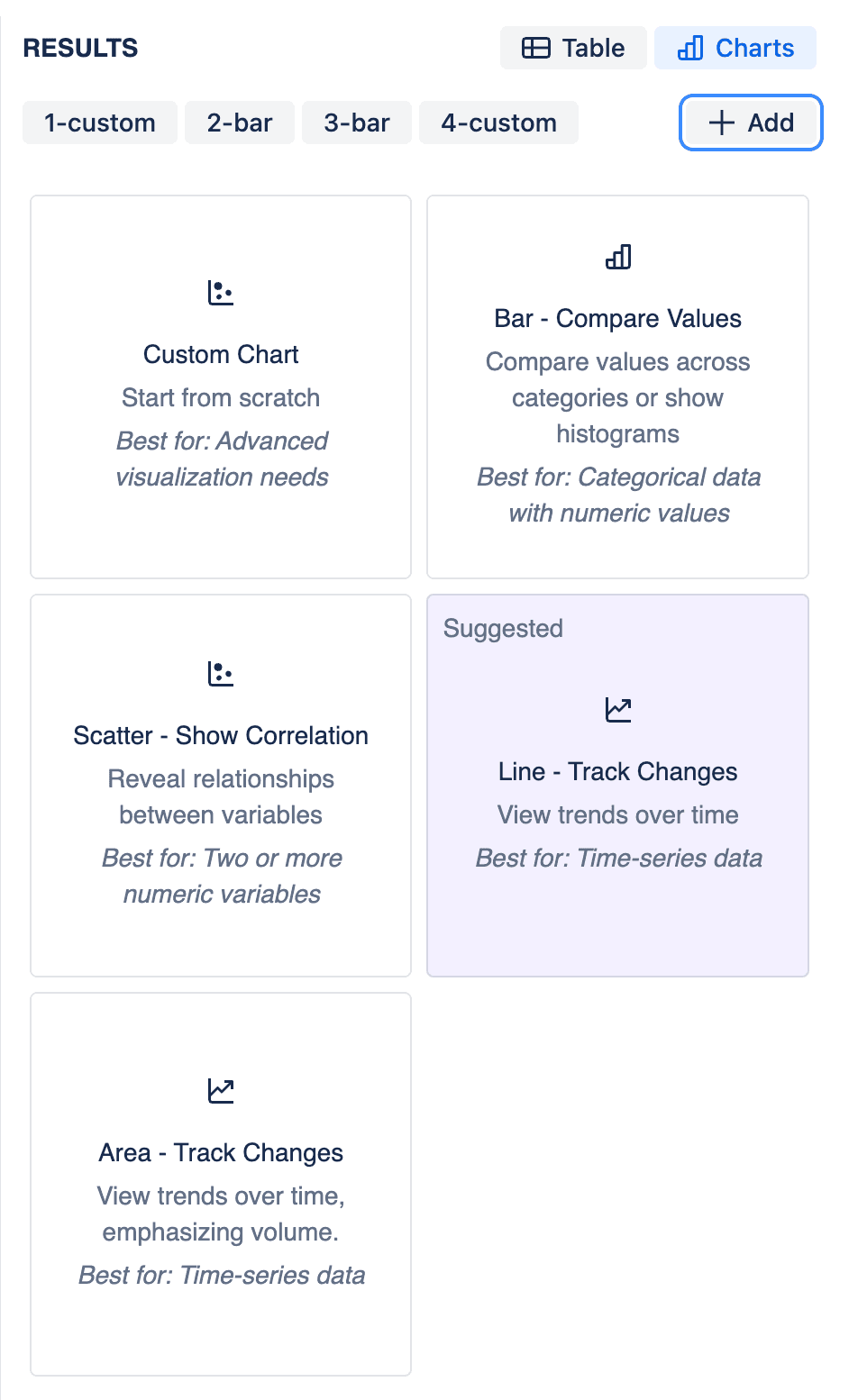

You can create charts in the Insights editor by clicking on the "Charts" button in Results section. From here you can access charts for the current query or create a new chart.

Manage charts in Insights editor

Charts in Report editor

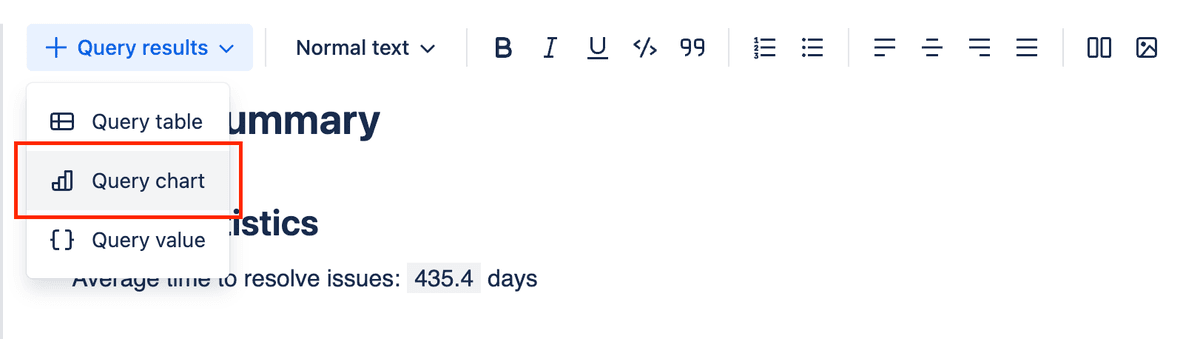

Insert chart by selecting "Query Chart" from the toolbar.

Insert chart in the report

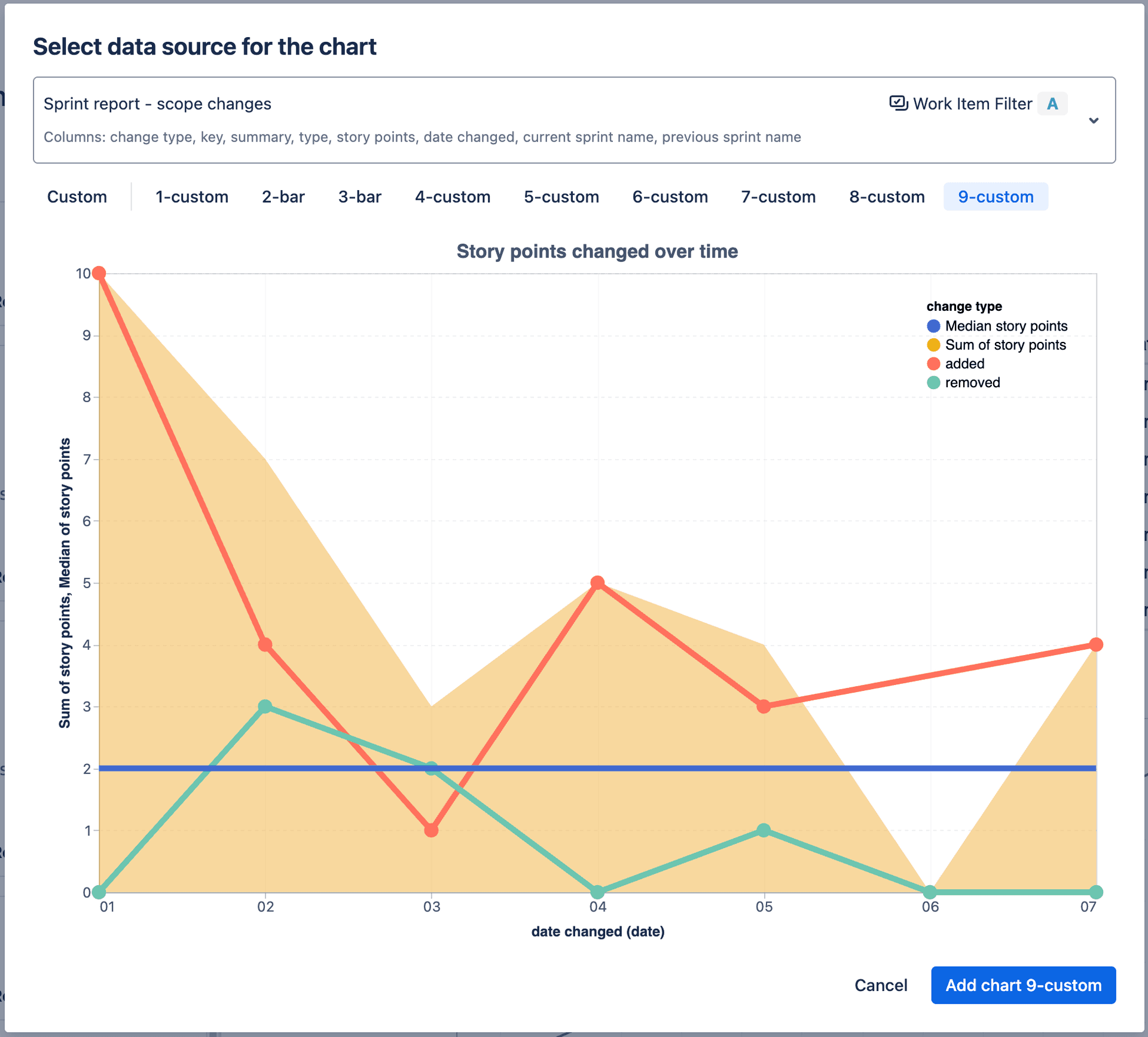

The "Select data source for the chart" modal will appear, allowing you to select an existing chart or create a new one.

Insert chart in the report

AI-generated charts

You don't have to build charts by hand — AI can generate them for you:

AI Explorer (Advanced Edition) — ask natural language questions about your Jira data and get answers complete with charts, without writing any SQL or chart specifications.
AI Assistant — when editing Insights, ask the assistant to create or modify a chart for your query results. It can produce both Vega-Lite and Vega specifications, including interactive features.

AI-generated charts can be further tweaked in the chart editor, just like charts created manually.

Editing charts

Type specific vs advanced editors

Chart editor presents different options depending on the chart type. Available chart types include:

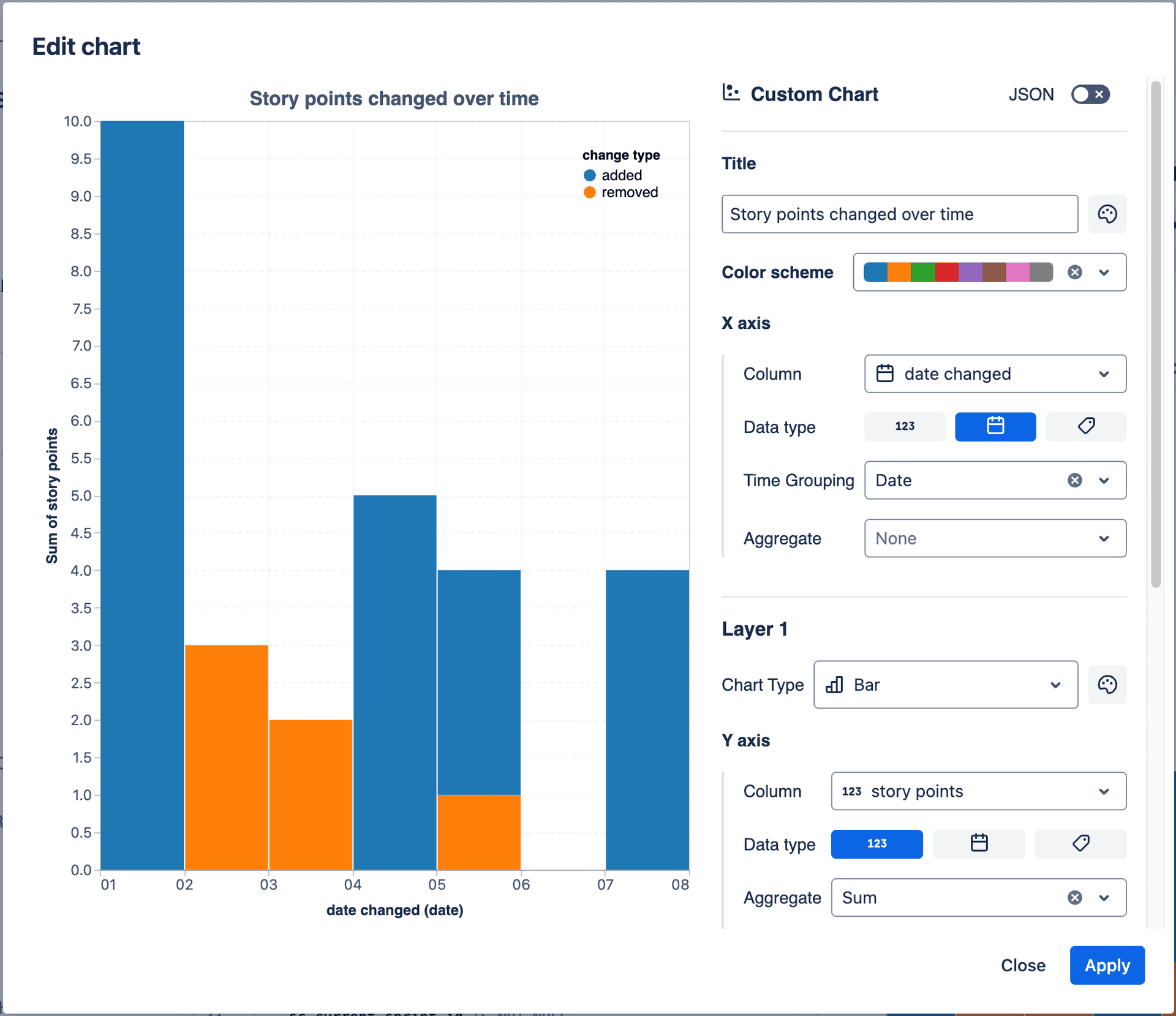

Bar Chart
Line Chart

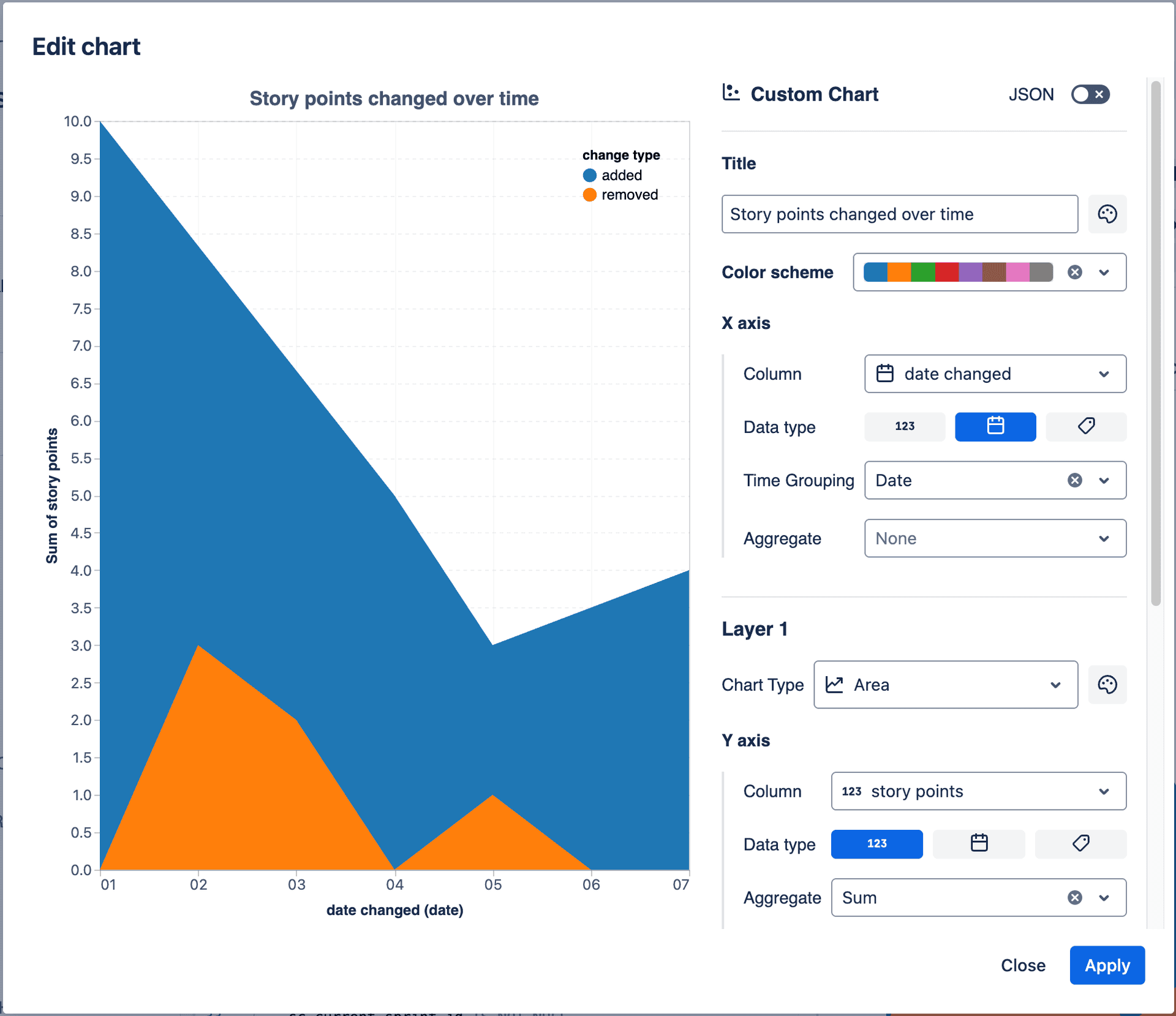

Area Chart
Scatter Chart

Any of the chart type specific editors can be "upgraded" to "Advanced" editor which:

shows more options
allows you to create multiple layers and mix and match different chart types (e.g. area, bar and line charts)
allows you to edit the chart JSON directly

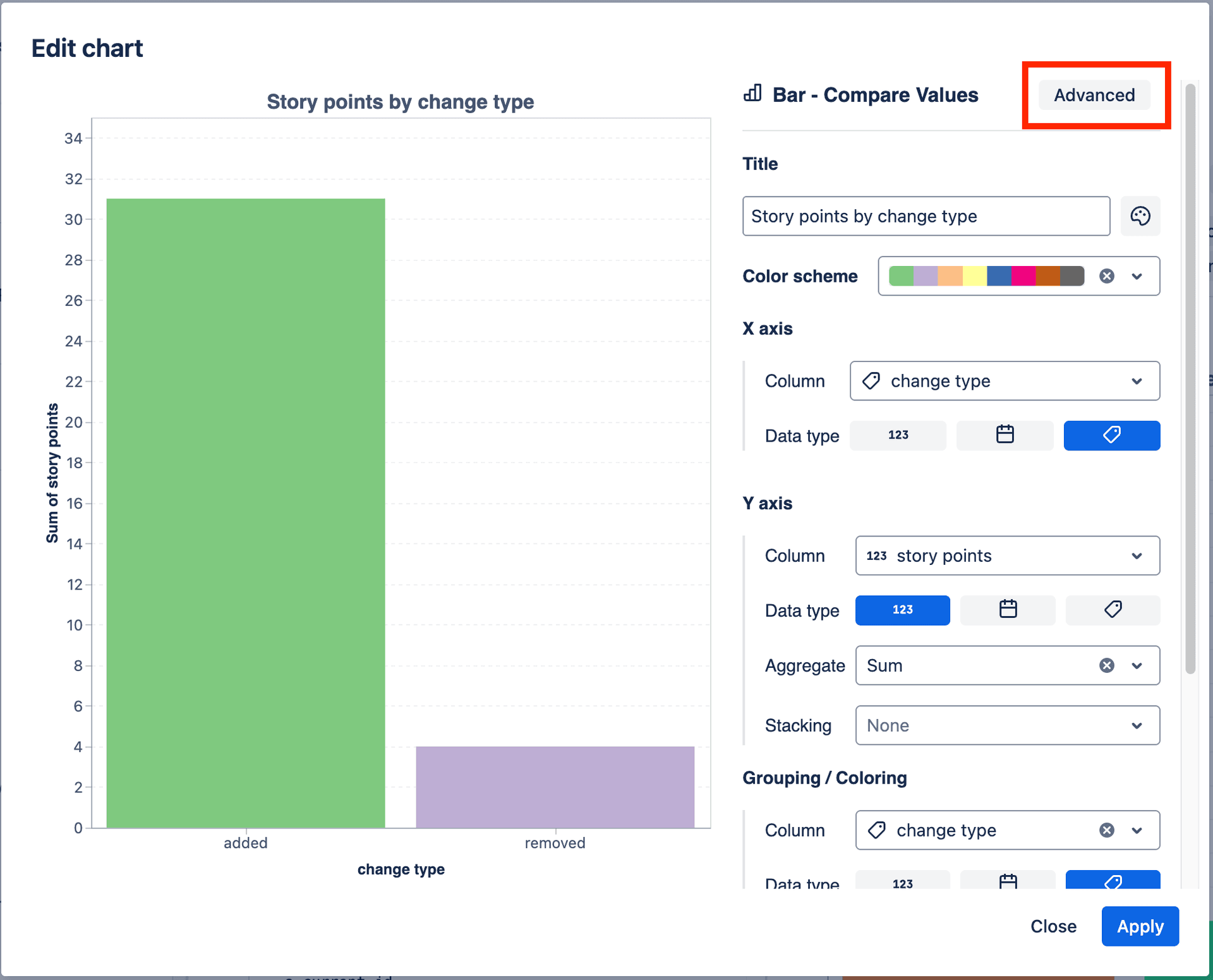

To upgrade, click on the "Advanced" button in the chart editor dialog.

Insert chart in the report

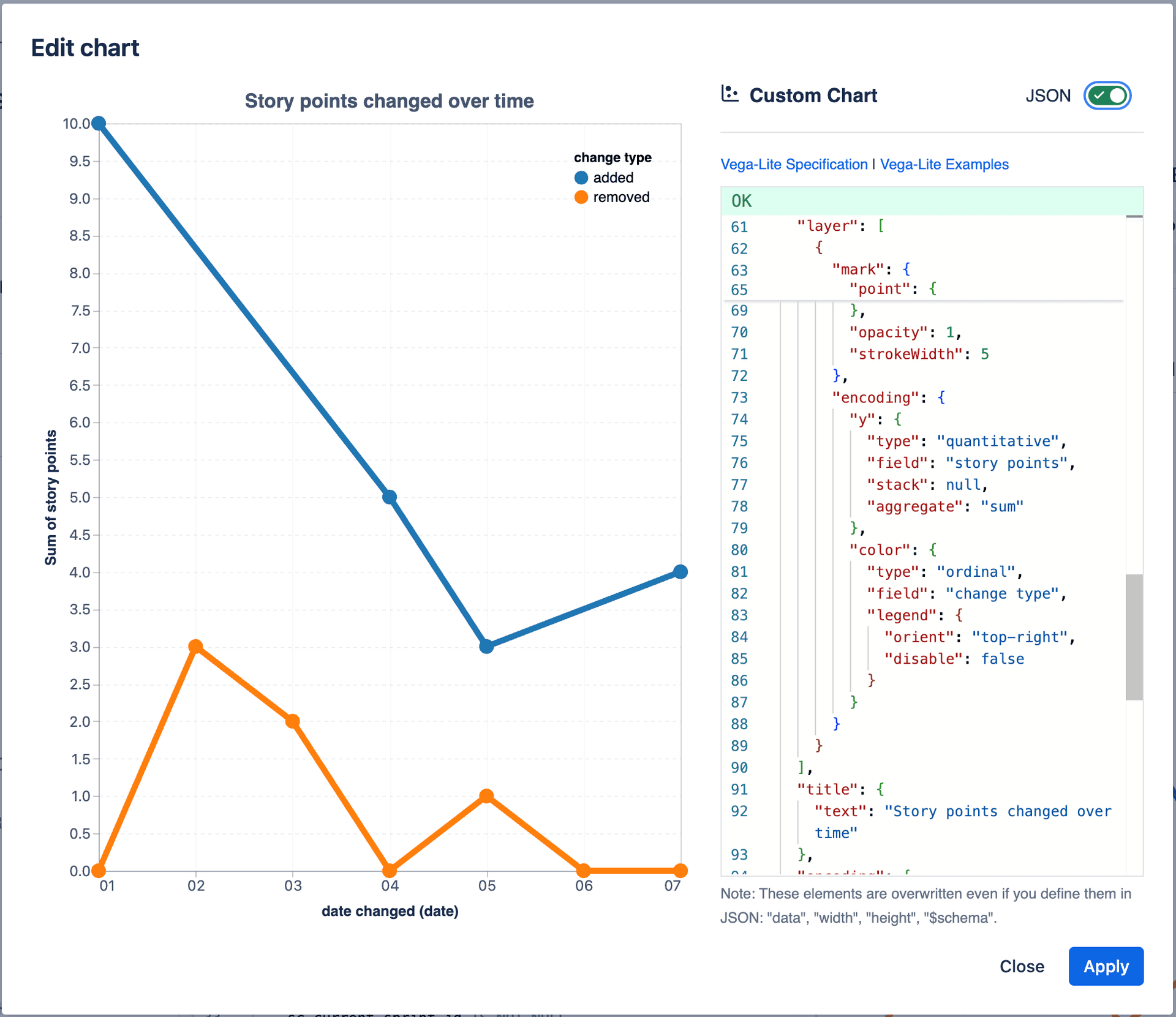

Visual editor does not support all the features of Vega-Lite, but you can edit the chart JSON directly. To do this, click on the JSON toggle in the chart editor dialog.

You can edit JSON directly following the Vega-Lite Top-Level Specification (opens in a new tab), or provide a full Vega specification (opens in a new tab) for maximum control over the visualization.

Vega-Lite vs Vega

Vega-Lite is a concise, high-level format — ideal for most charts and the format used by the visual editors.
Vega is a lower-level, more verbose format that unlocks advanced visualizations and fine-grained control over scales, signals, and interactions not expressible in Vega-Lite.

The JSON editor accepts both formats — the chart renderer detects which specification you are using automatically.
